Eilbeck Sheave Drawings

Sheaves Model A

Sheaves - Type A

Gosan produces over 25.000 sheaves each year with an average diameter of 1000 mm. The majority are welded machined types i.e. manufactured from rolled steel (or forged steel) and then welded and finished. Gosan also makes other types of sheaves such as plastic sheaves and solid or cast sheaves, although in smaller numbers. The range of welded machined sheaves includes different constructional designs that adapt perfectly to the demands of the different sectors of the market for hoisting, transport and maintenance machinery in which Gosan is present. Gosan’s expertise in the manufacture of welded sheaves allows for different constructive possibilities ensuring that all costumer’s technical requirements are satisfied. These constructive solutions can be subdivided into the following versions: Sheaves made from a plate opened down from the centre with the throat formed by cold forming. Due to their design and construction, they are normally used for small diameters.

Sheaves Model A - with bronze bushing

Sheave Model A - bronze bushing complies with the International Standards.
Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested).
Default final protection: (Other final coatings by request). Relation: D1 approx. 26 x wire diameter.
Bronze bushing material: Cu Sn12.

Sheave Nº	Ø WIRE	d1	d2	d3	L2	b
1	6-7	125	150	25	32	23
2	7-8	150	175	30	34	24
3	9-10	180	215	40	38,5	30
4	11-12	200	240	50	43	34
5	13	240	285	60	48	39
6	14-15	280	330	70	52	42
7	16	290	345	80	56	45
8	17-18	355	415	80	56	51
9	20-21	400	460	90	64	56

Sheaves Model A - with ball bearings

Sheave Model A - ball bearings complies with the International Standards.
Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested).
Default final protection: primer layer. (Other final coatings by request).
Relation: D1 approx. 26 x wire diameter.
Ball bearings 6 serial with sealing washers 2RS.

Sheave Nº	Ø WIRE	d1	d2	d3	L1	b
1	9	225	260	45	78	30
2	11	280	320	55	88	35
3	13	315	360	60	88	39
4	14	355	405	70	88	44
5	16	400	455	75	108	47
6	18	450	510	80	108	54
7	20	500	570	90	118	59

Sheave Model A - with roller bearing

Sheave Model A - roller bearings complies with the International Standards.
Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested).
Default final protection: primer layer.
(Other final coatings by request).
Relation: D1 approx. 19 x wire diameter.
Roller bearing SL04 (NNF).

Sheave Nº	Ø WIRE	d1	d2	d3	L2	b
1	24	430	505	100	54	65
2	26	470	550	100	54	71

Sheaves Model B-D Y C

Sheaves Model B-D and C with Bronze Bushing

Sheave Model B-D and C with Bronze Bushing complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested). Default final protection: primer layer. (Other final coatings by request).
Relation: D1 approx. 23-28 x wire diameter.
Bronze bushing material: Cu Sn12.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L1
1	400	16	455	75	46	108
2	450	18	510	80	51	108
3	500	20	570	90	56	118
4	560	22	630	100	58	128
5	560	20	630	140	56	120
6	630	26	710	110	67	138
7	630	22	700	150	58	130
8	710	28	790	120	68	138
9	710	26	790	170	67	140
10	800	32	890	130	77	138
11	800	28	880	180	68	150
12	900	36	1.010	140	89	138
13	900	32	990	200	77	160
14	1.000	36	1.110	220	89	160
15	1.120	40	1.240	240	98	190
16	1.250	44	1.380	260	106	190

Sheave Model B-D and C - with roller bearing, Form X

Sheave Model B-D and C with Roller Bearing, Form X complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested).
Default final protection: primer layer. (Other final coatings by request).
Relation: D1 approx. 23-28 x wire diameter.
Ball bearings 6 serial with sealing washers Cu Sn12.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L2	L3
1	400	16	455	80	46	49	60
2	450	18	510	80	51	49	60
3	500	20	570	90	56	54	67
4	560	22	630	100	58	54	67
5	560	20	630	140	56	77	95
6	630	26	710	110	67	65	80
7	630	22	700	150	58	81	100
8	710	28	790	120	68	65	80
9	710	26	790	170	67	99	122
10	800	32	890	130	77	77	95
11	800	28	880	180	68	111	36
12	900	36	1.010	140	89	77	95
13	900	32	990	200	77	120	150
14	1.000	36	1.110	220	89	134	160
15	1.120	40	1.240	240	98	134	160
16	1.250	44	1.380	260	106	154	190

Sheave Model B-D and C with Roller Bearing, Form Y

Sheave Model B-D and C - Roller Bearings, Form Y complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested). Default final protection: primer layer. (Other final coatings by request).
Relation: D1 approx. 23-28 x wire diameter.
Bronze bushing material: Cu Sn12.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L2	L3
1	400	16	455	80	46	49	60
2	450	18	510	80	51	49	60
3	500	20	570	90	56	54	67
4	560	22	630	100	58	54	67
5	560	20	630	140	56	77	95
6	630	26	710	110	67	65	80
7	630	22	700	150	58	81	100
8	710	28	790	120	68	65	80
9	710	26	790	170	67	99	122
10	800	32	890	130	77	77	95
11	800	28	880	180	68	110	136
12	900	36	1.010	140	89	77	95
13	900	32	990	200	77	120	150
14	1.000	36	1.110	220	89	134	160
15	1.120	40	1.240	240	98	134	160
16	1.250	44	1.380	260	106	154	190

Sheave Model B-D and C with Roller Bearing, Covers and Axle Bushing

Sheave Model B-D and C with Roller Bearing, Covers and Axle Bushing complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested). Default final protection: primer layer. (Other final coatings by request).
Relation: D1 approx. 23-28 x wire diameter.
Roller bearing NNC-V serial.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L2
1	400	16	455	75	46	130
2	450	18	510	80	51	130
3	500	20	570	90	56	140
4	560	22	630	100	58	150
5	560	20	630	140	56	140
6	630	26	710	110	67	160
7	630	22	700	150	58	150
8	710	28	790	120	68	160
9	710	26	790	170	72	160
10	800	32	890	130	90	160
11	800	28	880	180	80	170
12	900	36	1010	140	100	160
13	900	32	990	200	90	180
14	1.000	36	1.110	220	100	180
15	1.120	40	1.240	240	112	210
16	1.250	44	1.380	260	125	210

Sheaves Model B-D And C with Ball Bearings, Form Z1

Sheave Model B-D And C with Ball Bearings, Form Z1 complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested).
Default final protection: primer layer. (Other final coatings by request).
Relation: D1 approx. 23-28 x wire diameter.
Ball bearings 6 serial with sealing shield Z.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L2
1	400	16	455	75	46	54
2	450	18	510	80	51	56
3	500	20	570	90	56	64
4	560	22	630	100	58	72
5	630	26	710	110	67	80

Sheave with ball bearings Model B-D And C Form Z2

Sheave Model B-D And C with Ball Bearings, Form Z2 complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested).
Default final protection: primer layer. (Other final coatings by request).
Relation: D1 approx. 23-28 x wire diameter.
Ball bearings 6 serial.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L1	L2
5	560	20	630	140	56	100	80
6	630	26	710	110	67	100	80
7	630	22	700	150	58	100	80
8	710	28	790	120	68	110	90
9	710	26	790	170	67	110	90
10	800	32	890	130	77	110	90
11	800	28	880	180	68	120	100
12	900	36	1010	140	89	120	100
13	900	32	990	200	77	130	110
14	1.000	36	1.110	220	89	140	120
15	1.120	40	1.240	240	98	140	120
16	1.250	44	1.380	260	106	170	140

Sheave Model B-D and C with Ball Bearing, Covers and Axle Bushing

Sheave Model B-D and C with Ball Bearing, Covers and Axle Bushing complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested). Default final protection: primer layer. (Other final coatings by request). Relation: D1 approx. 23-28 x wire diameter. Ball bearings 6 serial.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L2
1	400	16	455	75	52	130
2	450	18	510	80	60	130
3	500	20	570	90	62	140
4	560	22	630	100	70	150
5	560	20	630	140	62	140
6	630	26	710	110	72	160
7	630	22	700	150	70	150
8	710	28	790	120	80	160
9	710	26	790	170	72	160
10	800	32	890	130	90	160
11	800	28	880	180	80	170
12	900	36	1.010	140	100	160
13	900	32	990	200	90	180
14	1.000	36	1.110	220	100	180
15	1.120	40	1.240	240	112	210
16	1.250	44	1.380	260	125	210

Sheaves B-D and C with Ball Bearings and Covers

Sheave Model B-D and C with Ball Bearing and Covers complies with the International Standards. Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested). Default final protection: primer layer. (Other final coatings by request). Relation: D1 approx. 23-28 x wire diameter. Ball bearings 6 serial.

SHEAVE Nº	d1	Ø WIRE	d2	d3	b	L3
1	400	16	455	75	52	130
2	450	18	510	80	60	130
3	500	20	570	90	62	140
4	560	22	630	100	70	150
5	560	20	630	140	62	140
6	630	26	710	110	72	160
7	630	22	700	150	70	150
8	710	28	790	120	80	160
9	710	26	790	170	72	160
10	800	32	890	130	90	160
11	800	28	880	180	80	170
12	900	36	1.010	140	100	160
13	900	32	990	200	90	180
14	1.000	36	1.110	220	100	180
15	1.120	40	1.240	240	112	210
16	1.250	44	1.380	260	125	210

Sheaves Model PEAR

Sheaves Model PEAR with Roller Bearings Covers and Axle Bushing

Sheave Model PEAR with Roller Bearings Covers & Axle Bushingcomplies with the International Standards
Material (steel):
- Rim and plates-S355J.2
- Hub-St52.0
Standard hardness: 200-250 HB (higher if requested)
Default final protection: primer layer
(Other final coatings by request)
Relation: D1 approx. 23-28 x wire diameter
Roller bearings NNC-V serial

SHEAVE Nº	d1	Ø WIRE	d2	r	R1	b	L3	d3
1	450	10-12	580	7	40	100	115	80
2	500	13-18	680	10	55	130	135	90
3	630	19-22	850	12,5	65	150	155	100
4	710	22-26	970	14	80	180	185	110
5	800	26-28	1.060	16	80	180	185	120
6	900	28-32	1.210	18	90	210	215	140
7	1.000	32-36	1.360	20	105	240	245	150
8	1.120	37-40	1.480	22	105	240	245	160
9	1.250	40-48	1.610	25	105	240	245	180

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 200 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 250 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 315 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 350 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 400 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 500 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 630 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 710 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 800 DIA GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY SINGLE SHEAVE BLOCK 900 DIA GENERAL ARRANGEMENT

Sheaves Model A

Sheaves Model B-D Y C

Sheaves Model PEAR

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 200 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 250 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 315 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 350 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 400 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 500 DIA
GENERAL ARRANGEMENT

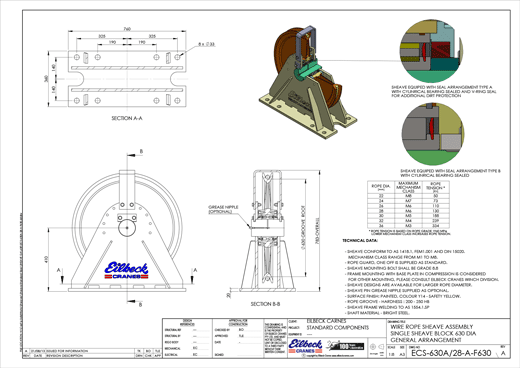

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 630 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 710 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 800 DIA
GENERAL ARRANGEMENT

WIRE ROPE SHEAVE ASSEMBLY
SINGLE SHEAVE BLOCK 900 DIA
GENERAL ARRANGEMENT
