Oaky Creek Winches
| Project Ref: | 70160 |
| Client: | Oaky Creek Joint Venture |
| Project: | Oaky Surface |
| Scope: |
Supply 60kN & 30kN Take-up Winches |
Winches Description
| Winch Technical Data...................................... | KOWN02 |
| Winch Line Pull..................................................... | 30kN |
| Winch Classification............................................ | M2 |
| Line Speed Nominal............................................ | 3m/min |
| Rope Diameter...................................................... | 18mm |
| Rope Construction.............................................. | QS816V(G)-1960MPa |
| Rope Breaking Strength.................................... | 291kN |
| Motor Power......................................................... | 2.2 kW / 4 Pole |
| Motor Starting....................................................... | DOL |
| Brake......................................................................... | Electro-Magnetic Integral with Motor |
| Motor Braking Torque........................................ | 30Nm |

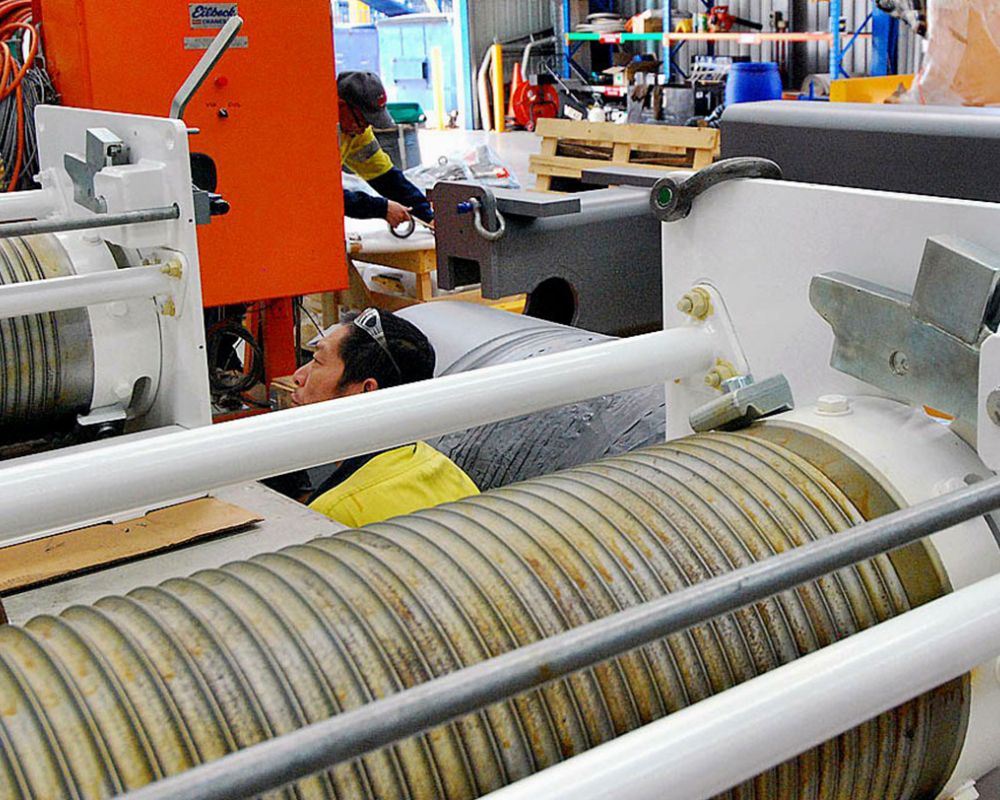

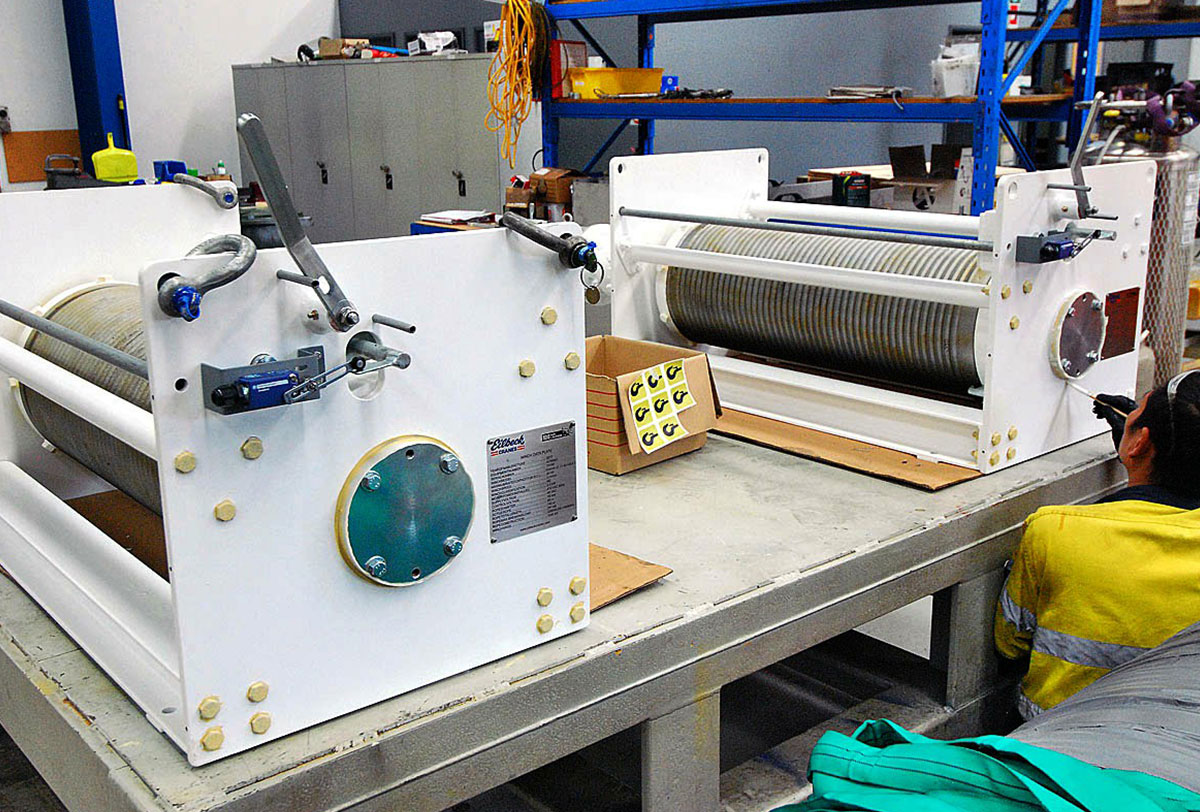

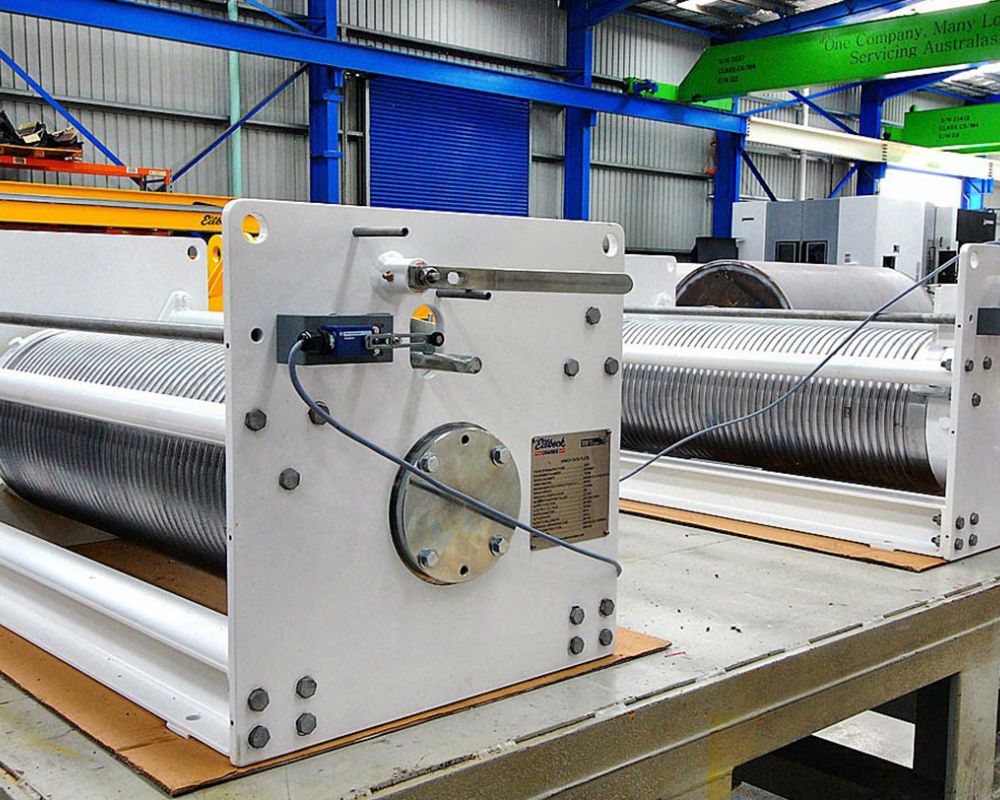

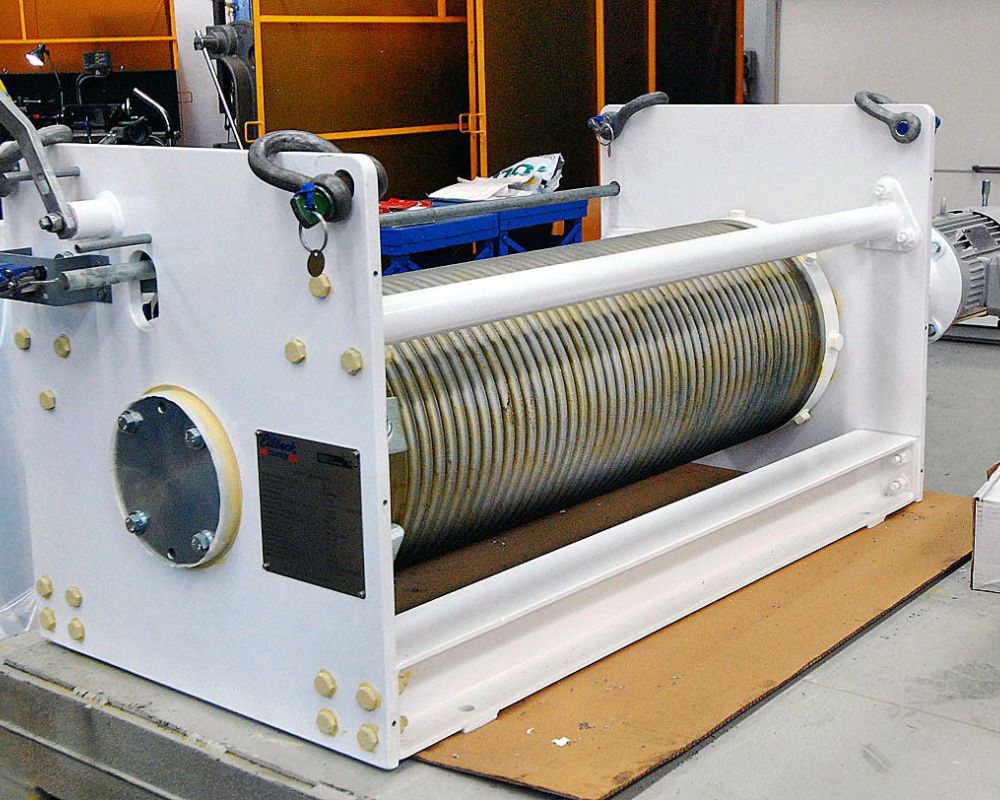

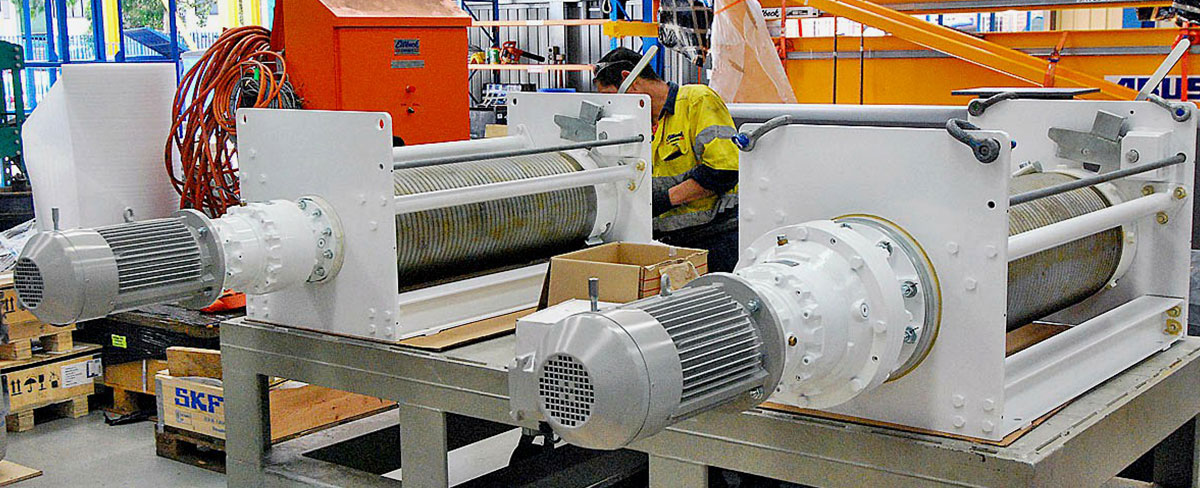

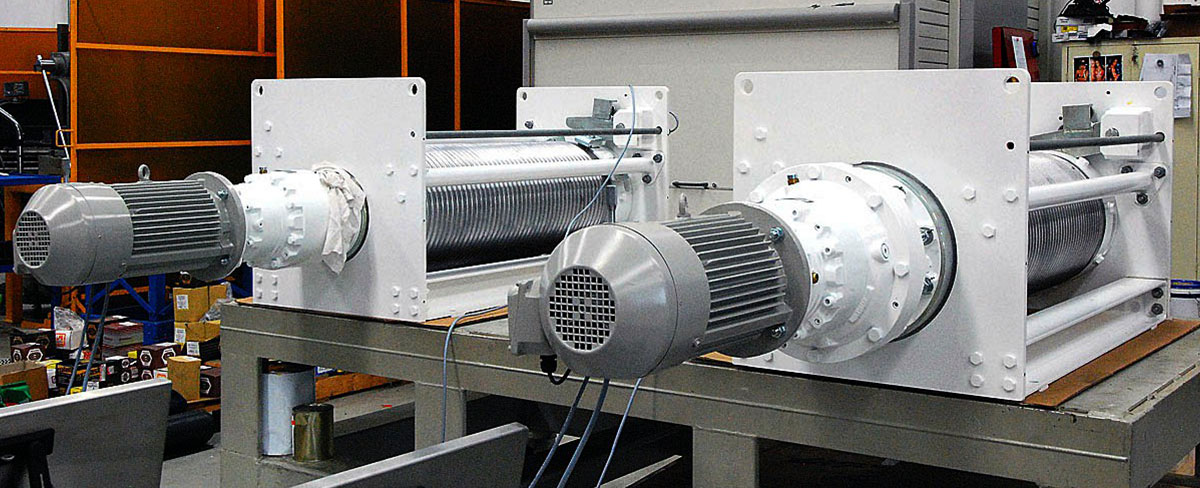

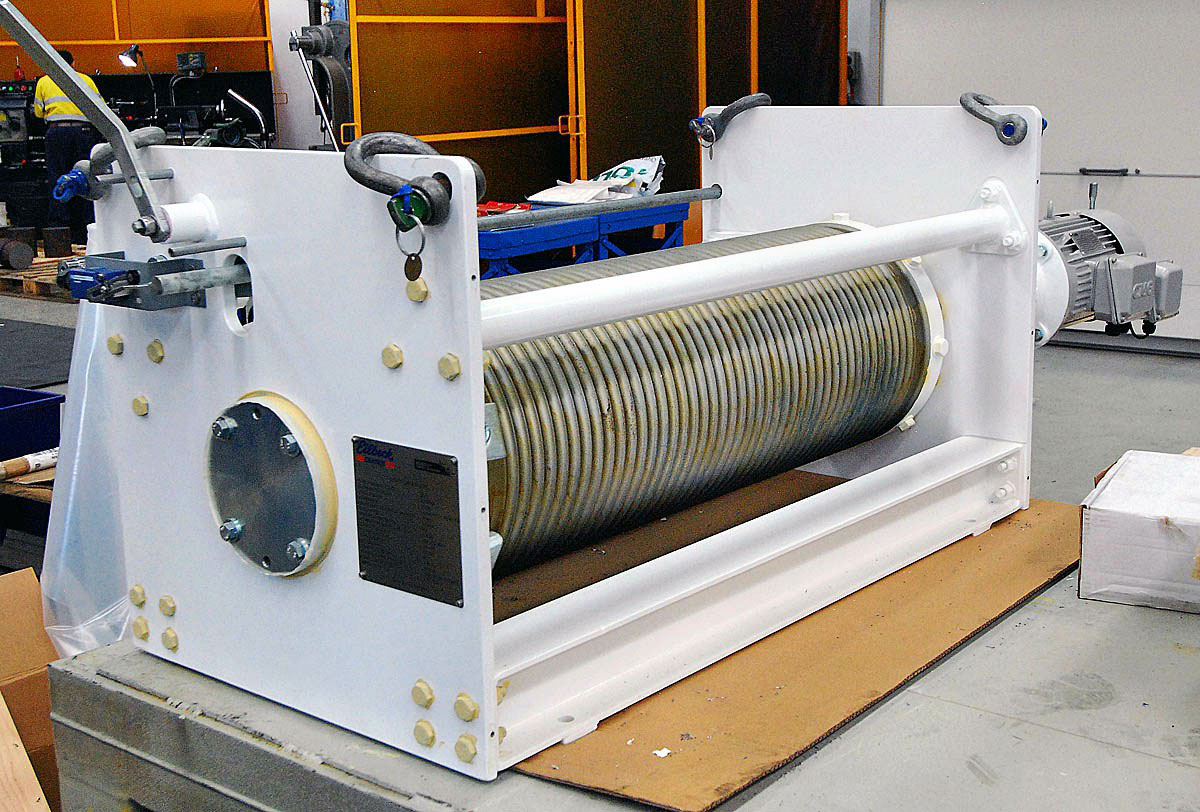

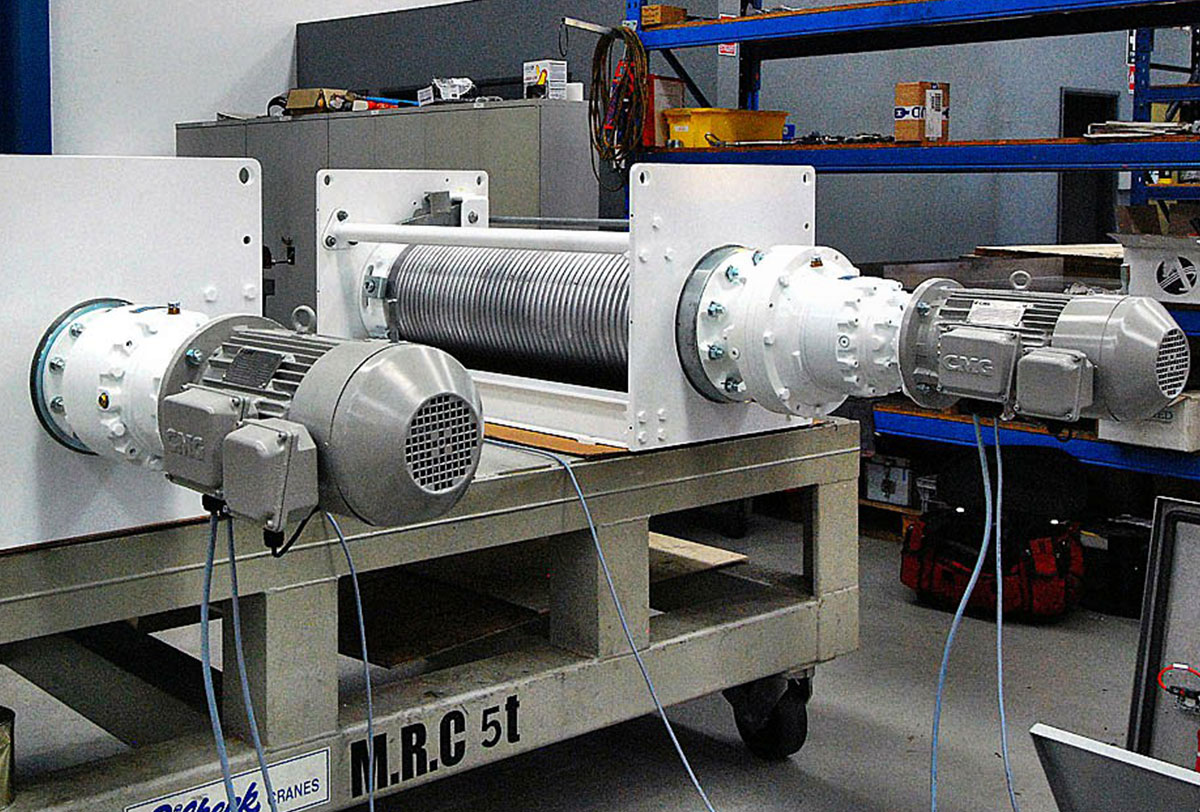

Each conveyor take-up winch is supplied as a fully assembled unit which consists of winch frame, rope drum, electric motor, motor brake, pawl system, slew bearing and planetary gear. The wire rope is also part of the winch and supplied loose
Each unit mounted on a single winch frame suitable for bolting either onto a concrete plinth and subsequent grouting or onto a steel structure
The winch frame incorporates with sheaves and an anchor point for the wire rope
Each conveyor take-up winch will act on the associated take-up pulley trolley via a sheaved cable system

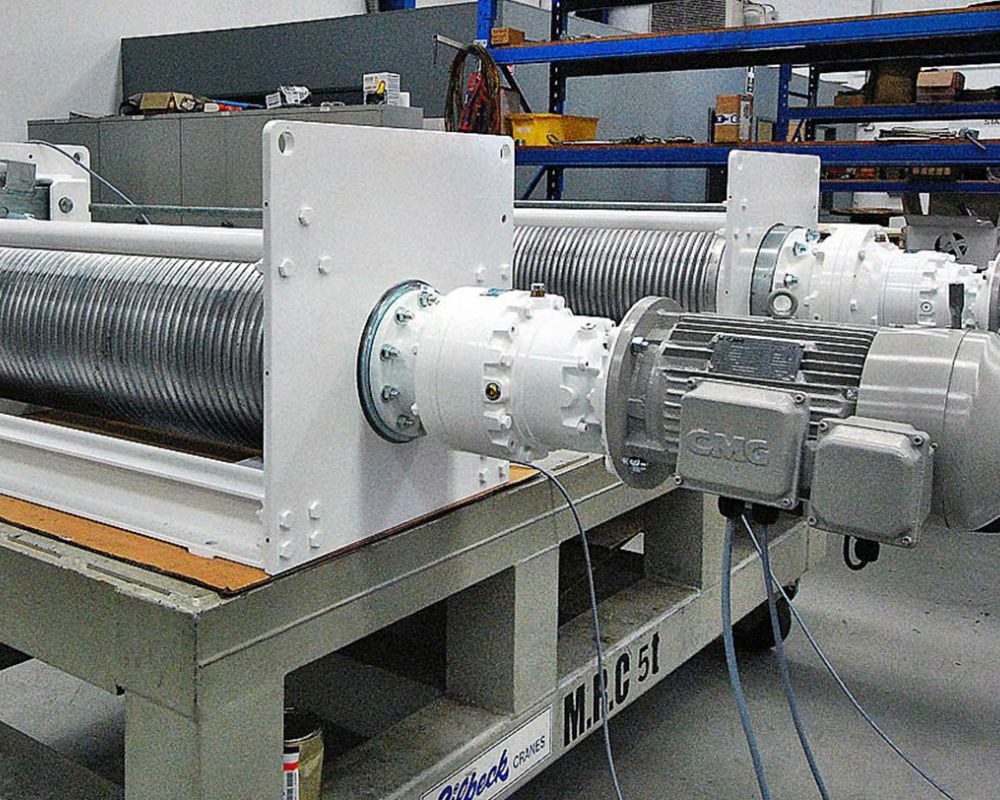

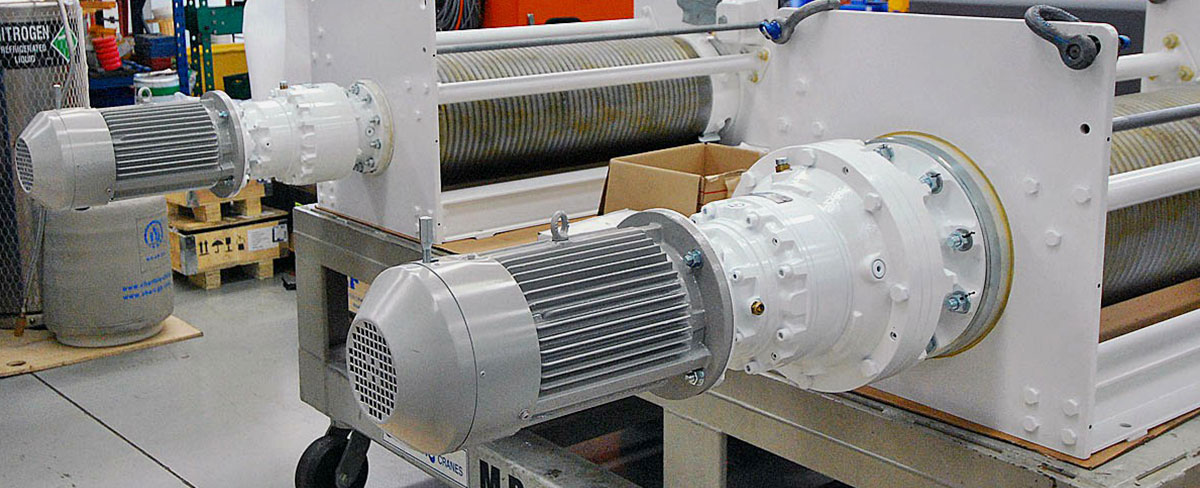

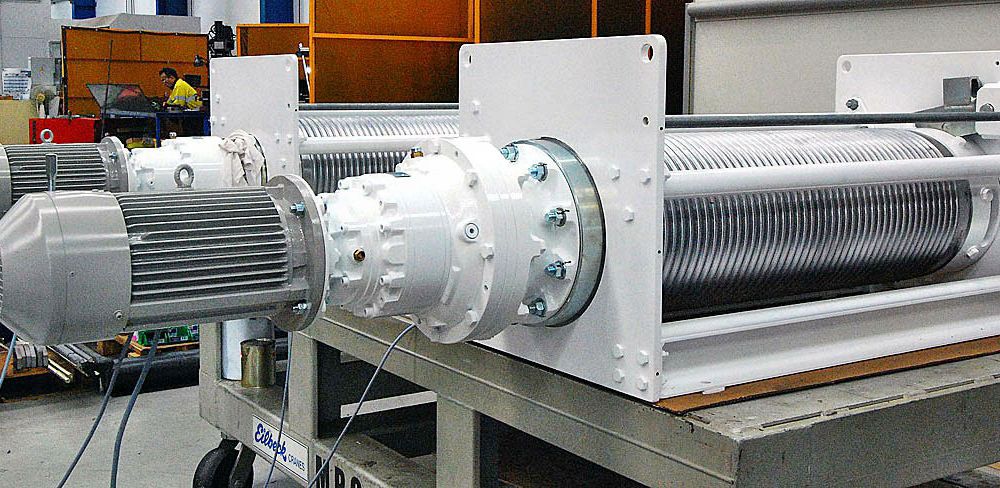

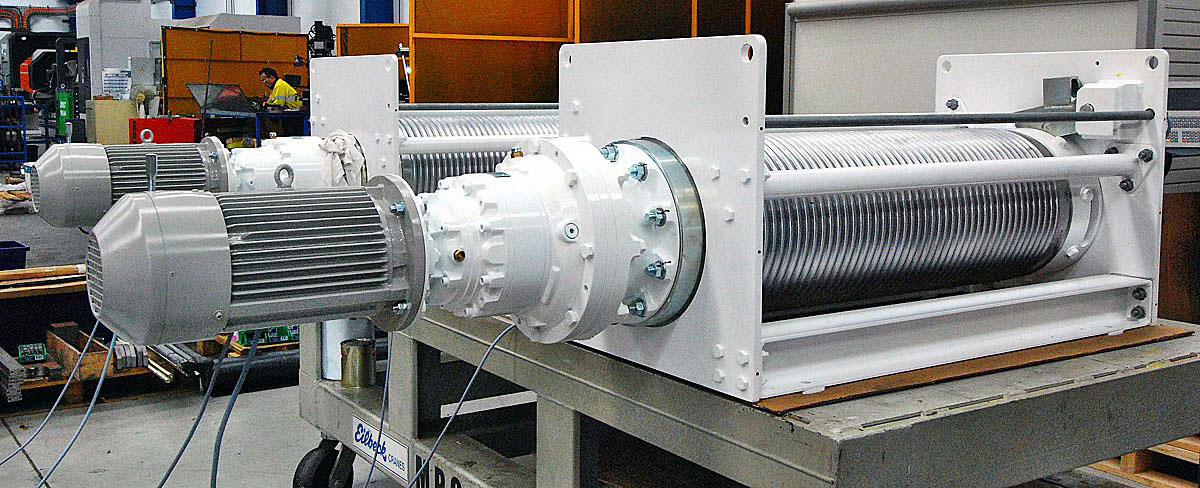

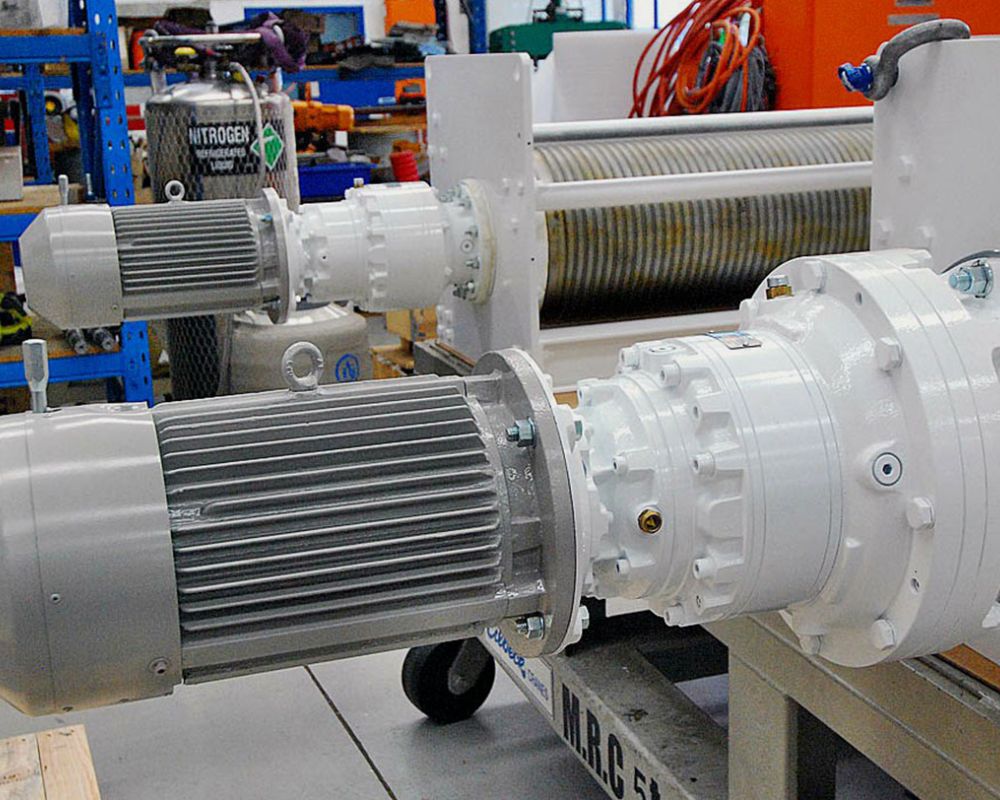

The winch motor is a 3 Phase 415 V Squirrel cage induction motor, and includes an electro magnetic brake
The Local Control Station provides access to control the winch assembly
