Eilbeck Engaged to Replace Second Winch for Alcoa

Project Ref:	70161
Client:	Alcoa of Australia Limited
Project:	AU-MIN-290 Winches and Ropes
Scope:	115kN Luffing Winch

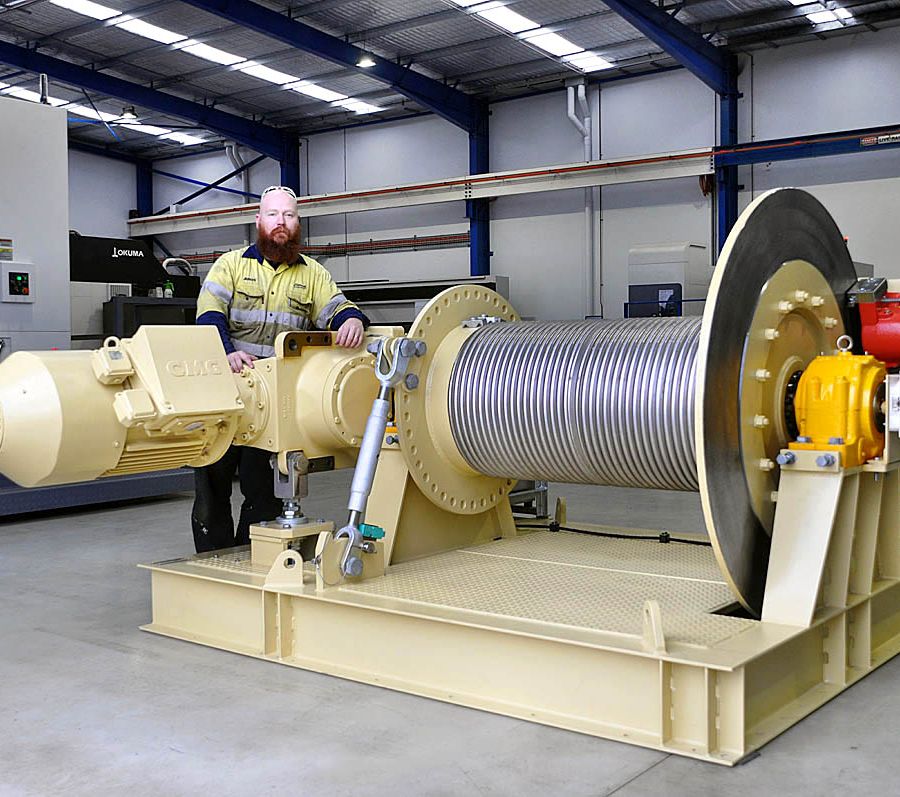

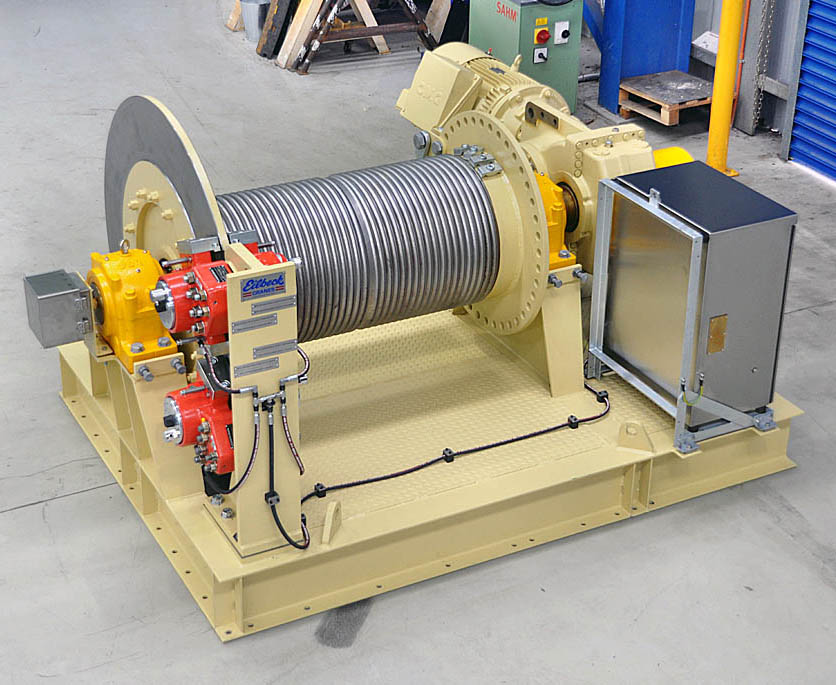

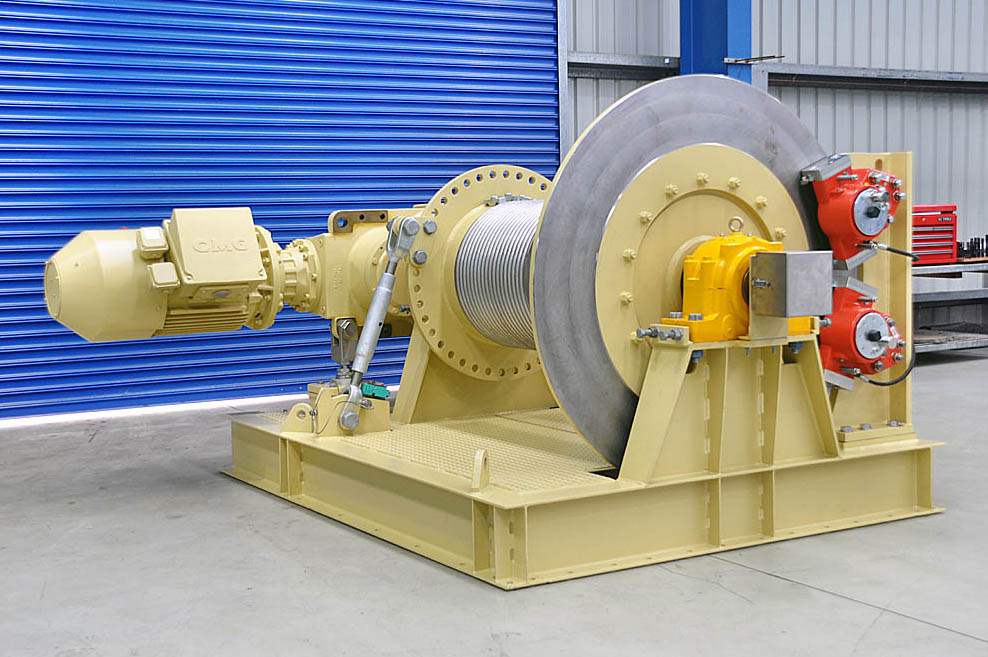

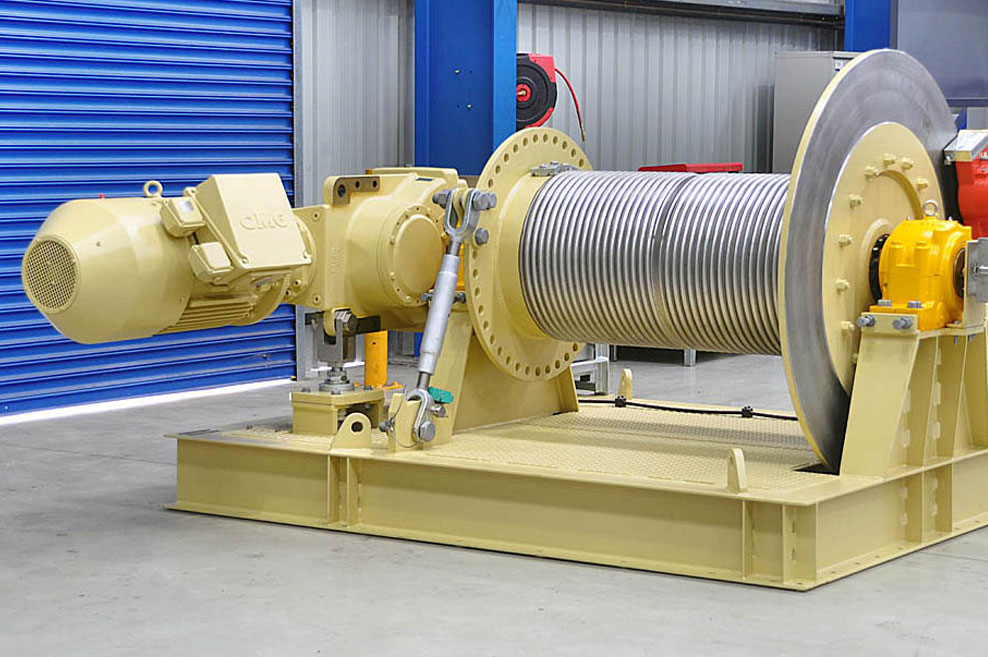

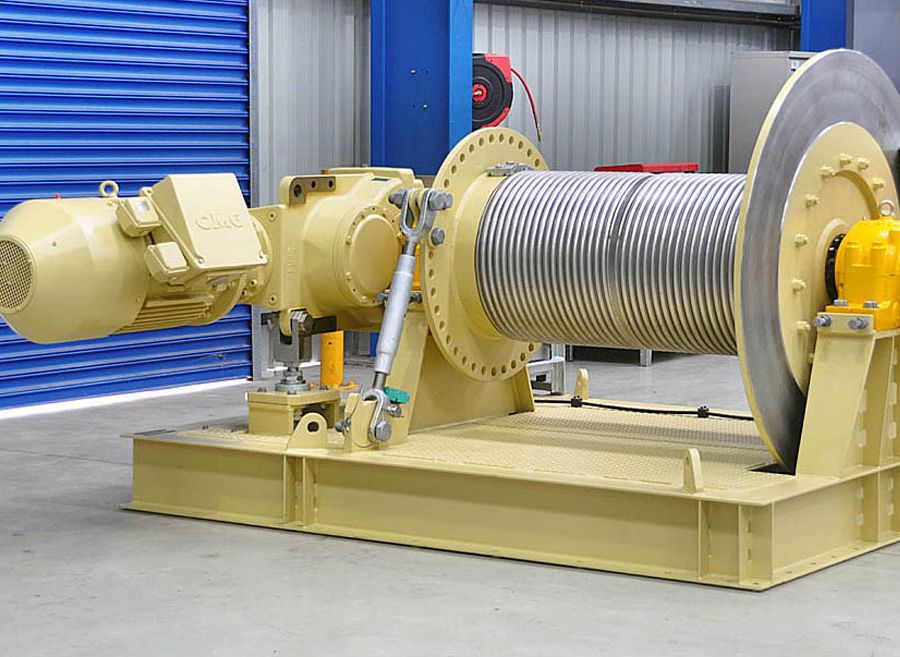

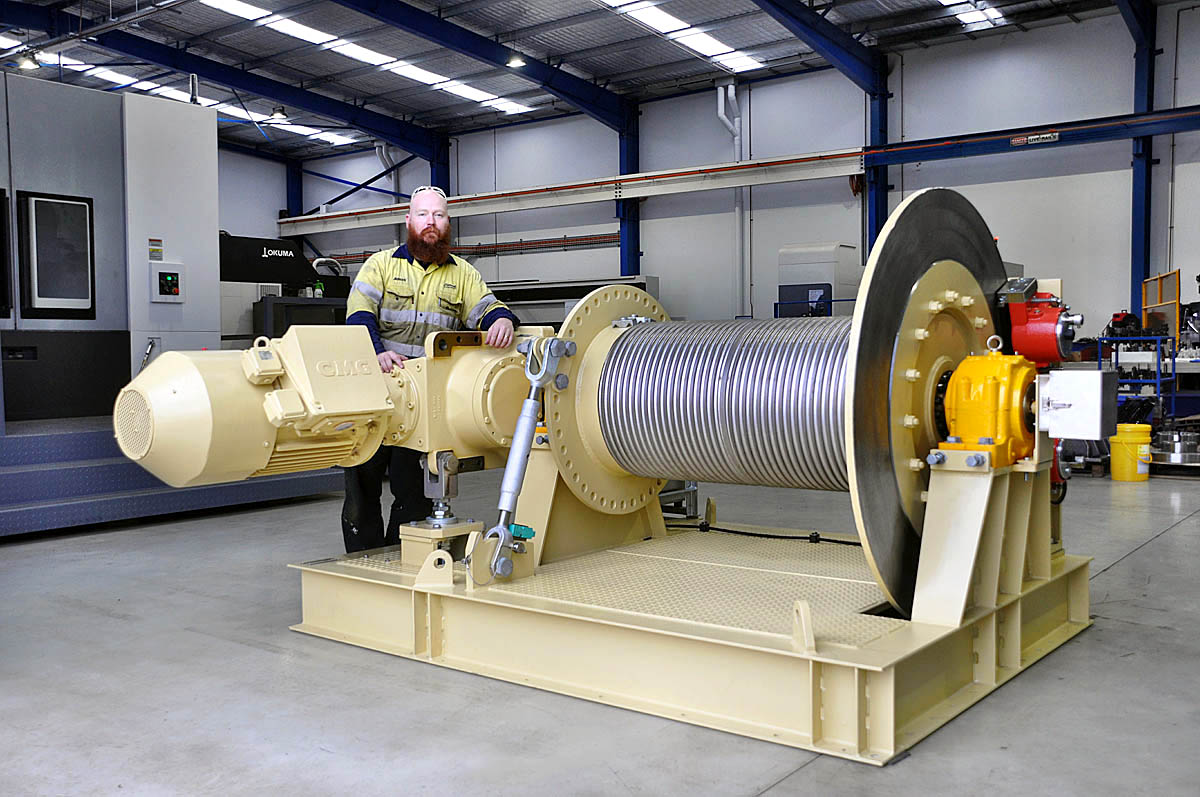

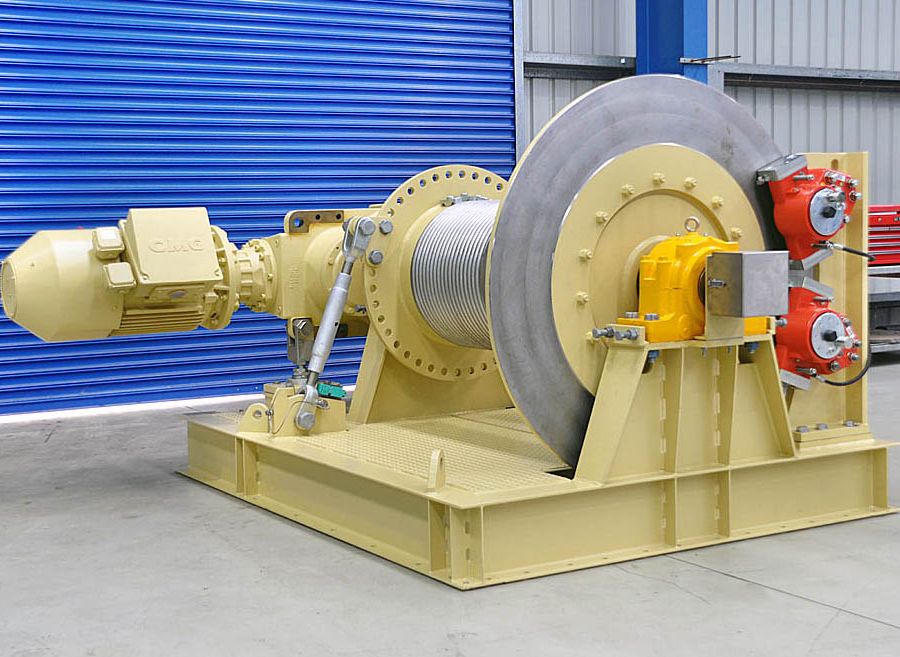

115kN line pull Winch

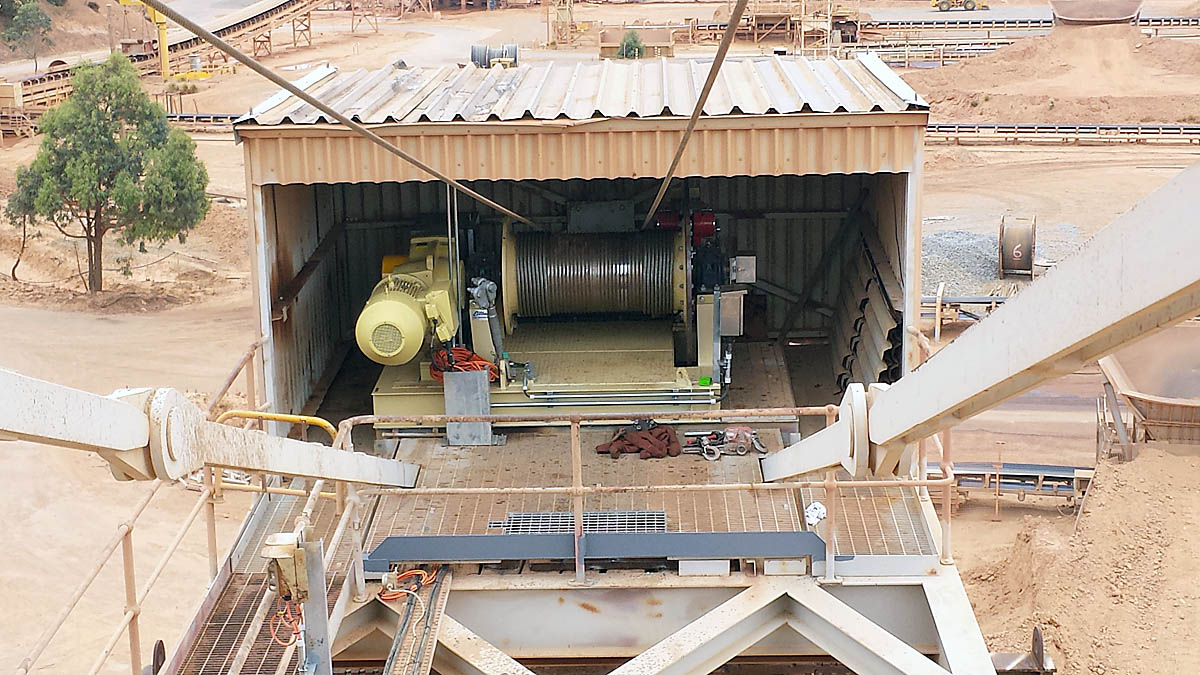

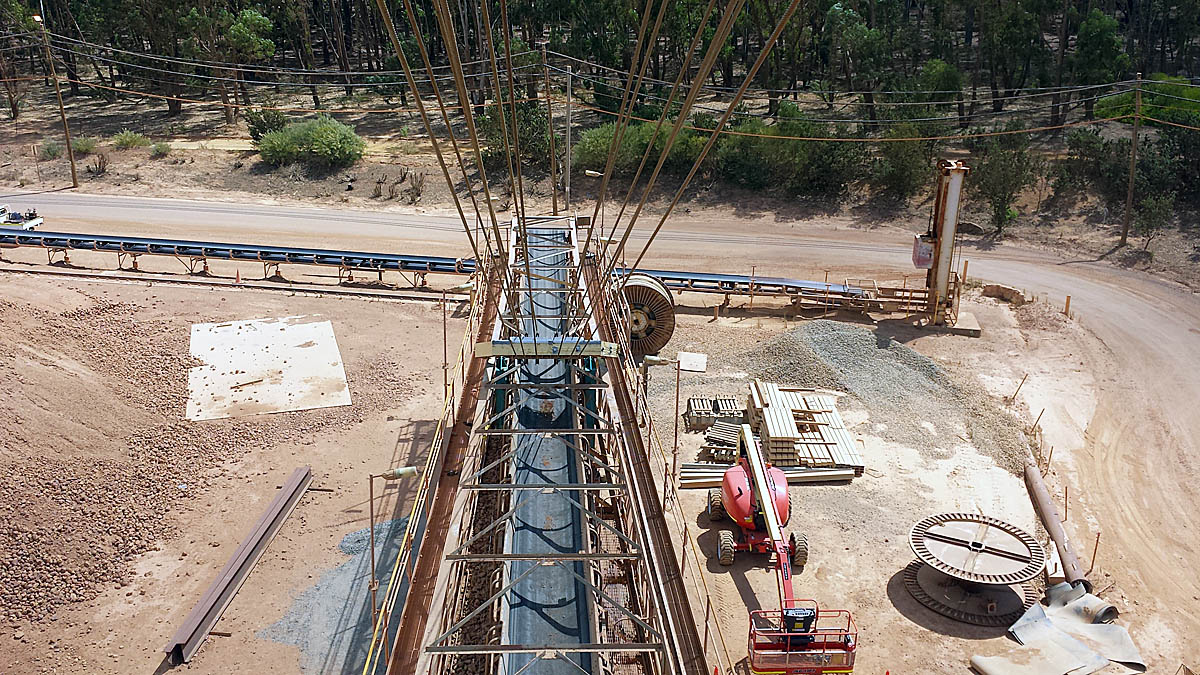

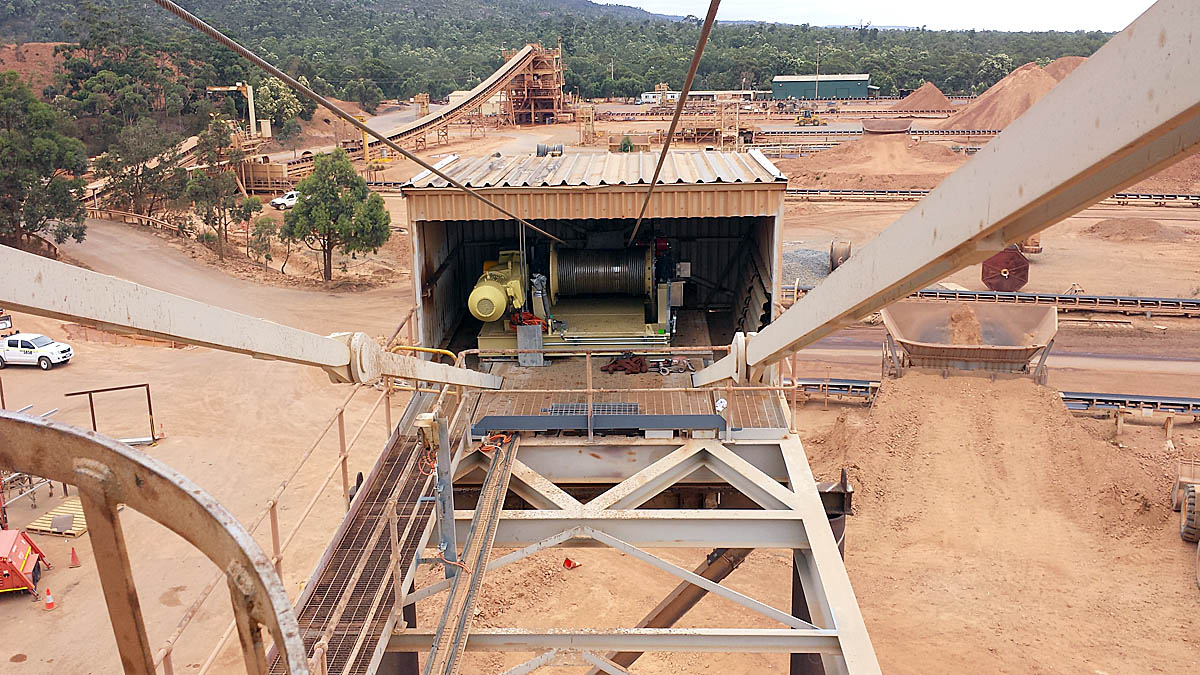

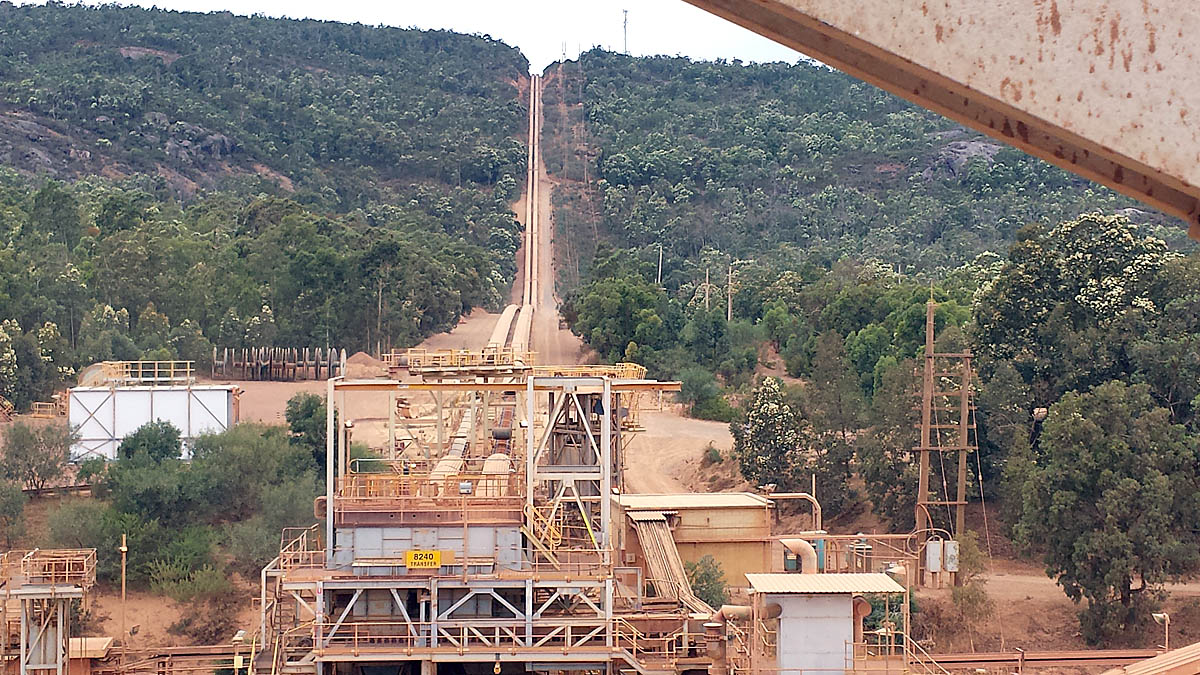

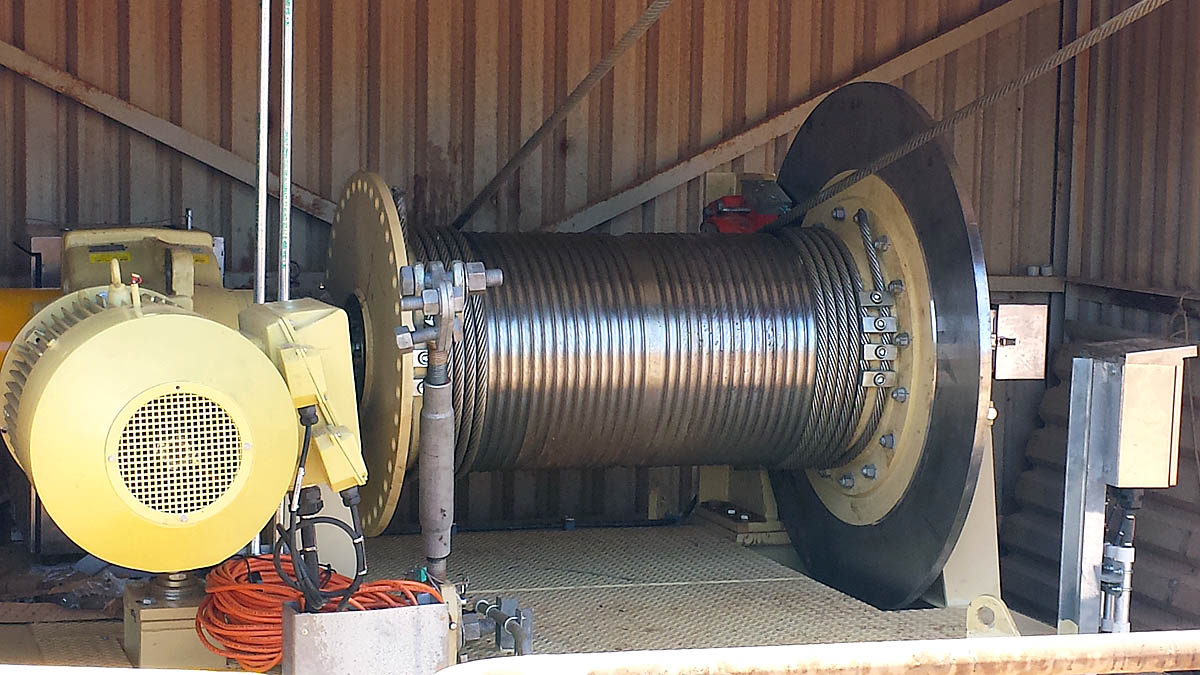

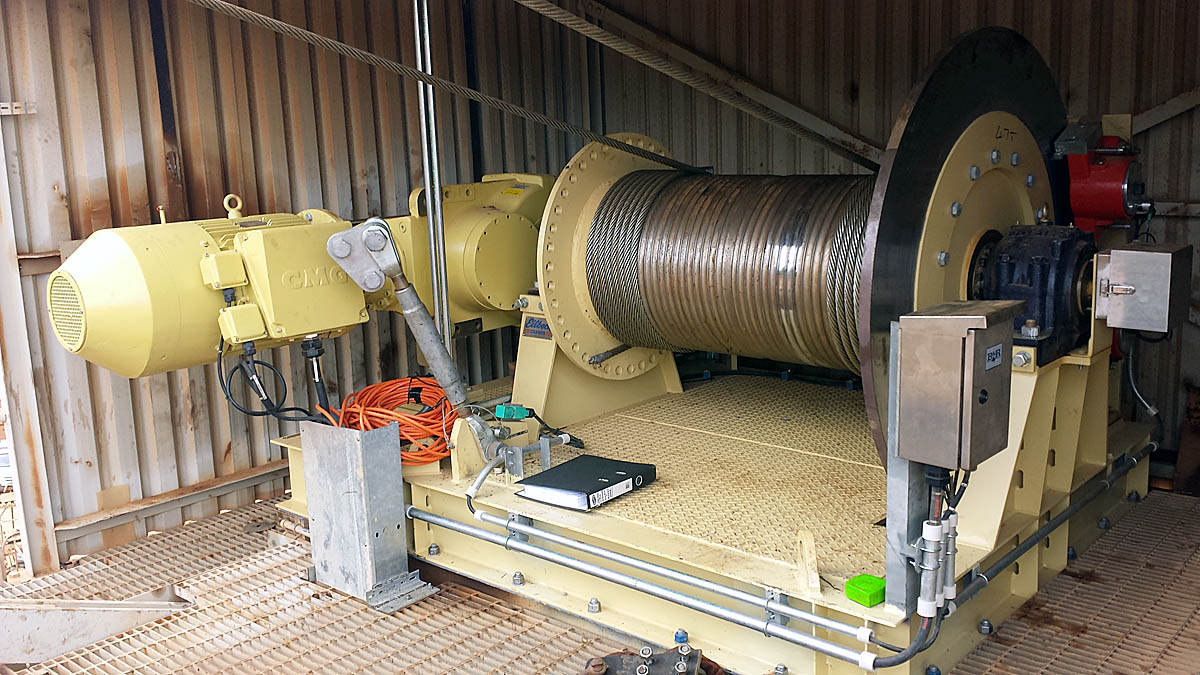

After a successful supply of a replacement winch for boom luffing winch system in 2014 on Huntly 190 stacker, Alcoa engaged Eilbeck Crane Winch Division to supply a second 115 kN Line pull winch, drive, ropes (2 off) and base frame, which is to replace the existing luffing winch system (approximately 40 years old) on the 290 Stacker, located at the Alcoa Pinjara Stacking Stockpiles.

The performance requirements for the two systems are the same and where possible the components for the 290 winch were manufactured the same.

No images were found.

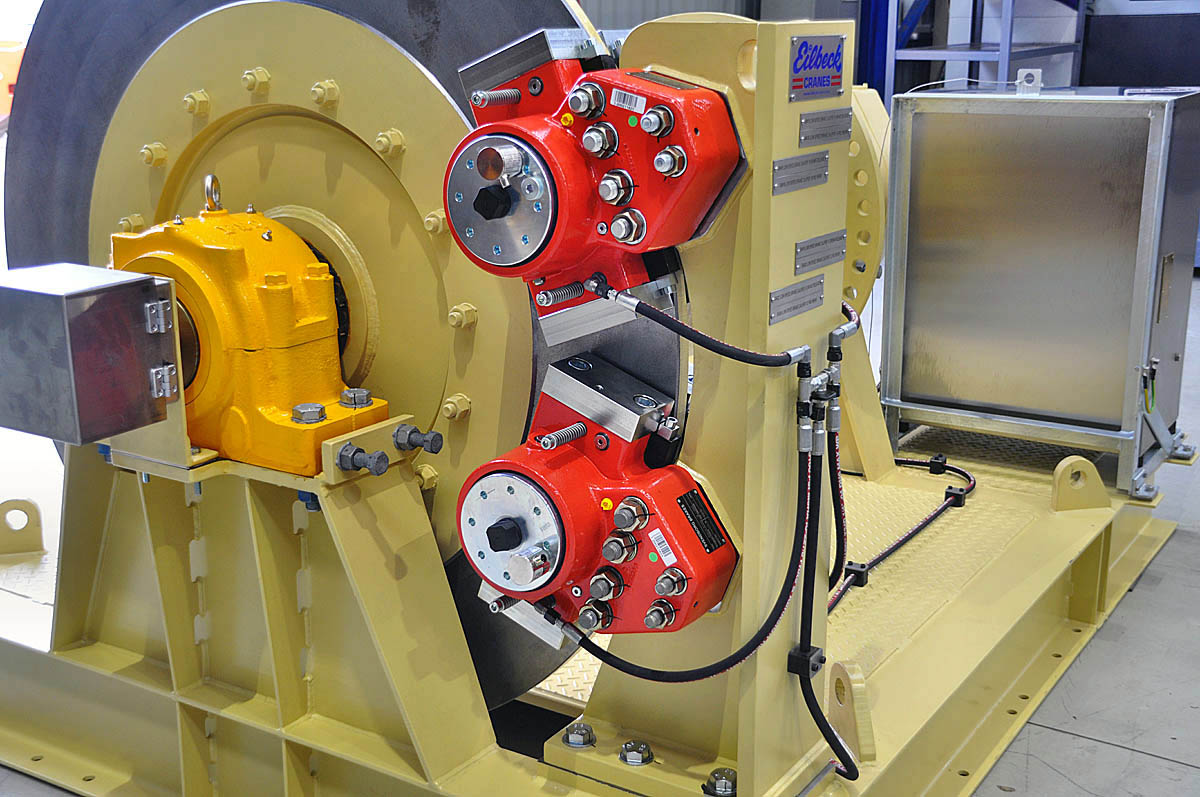

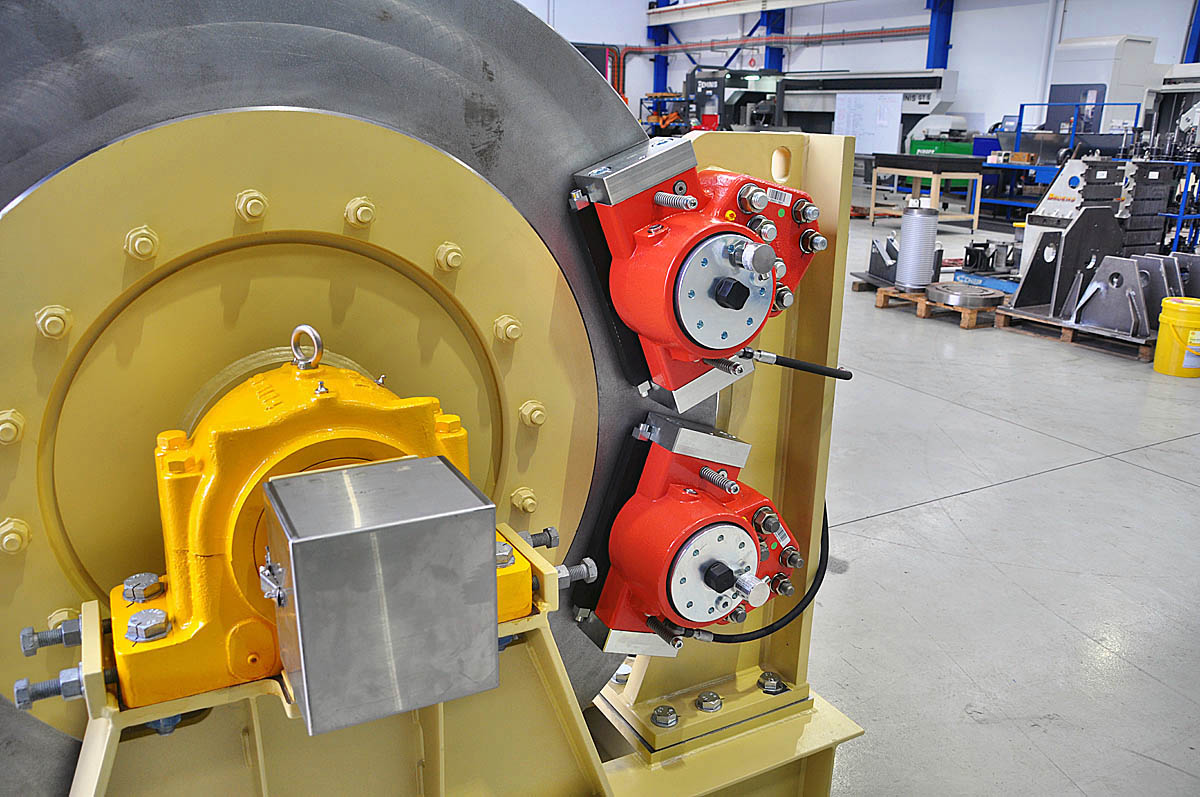

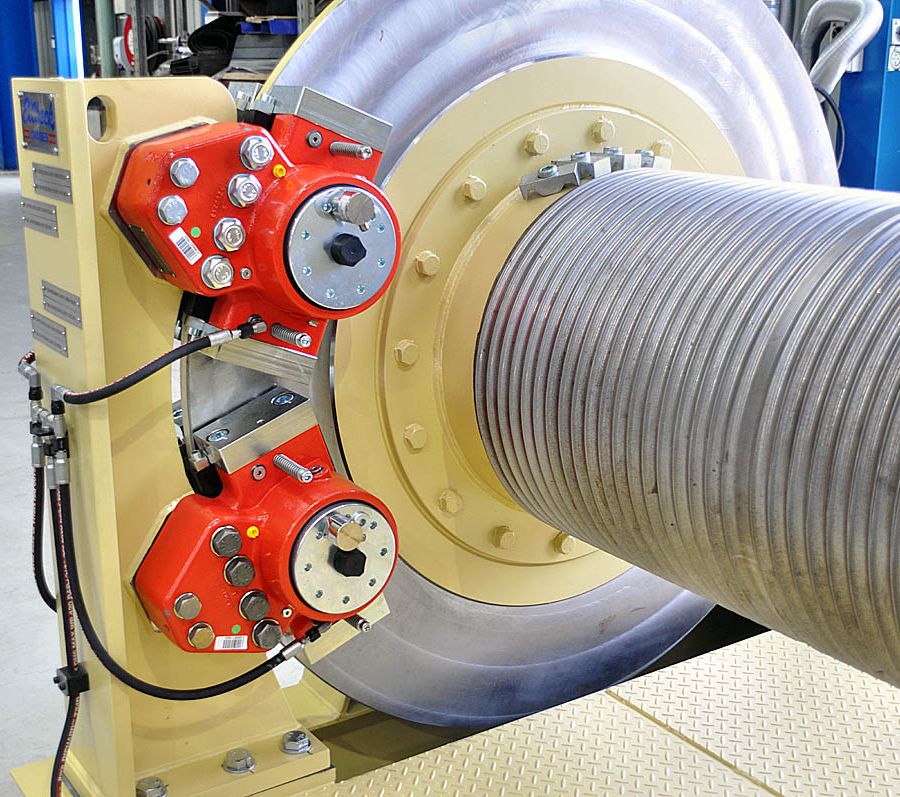

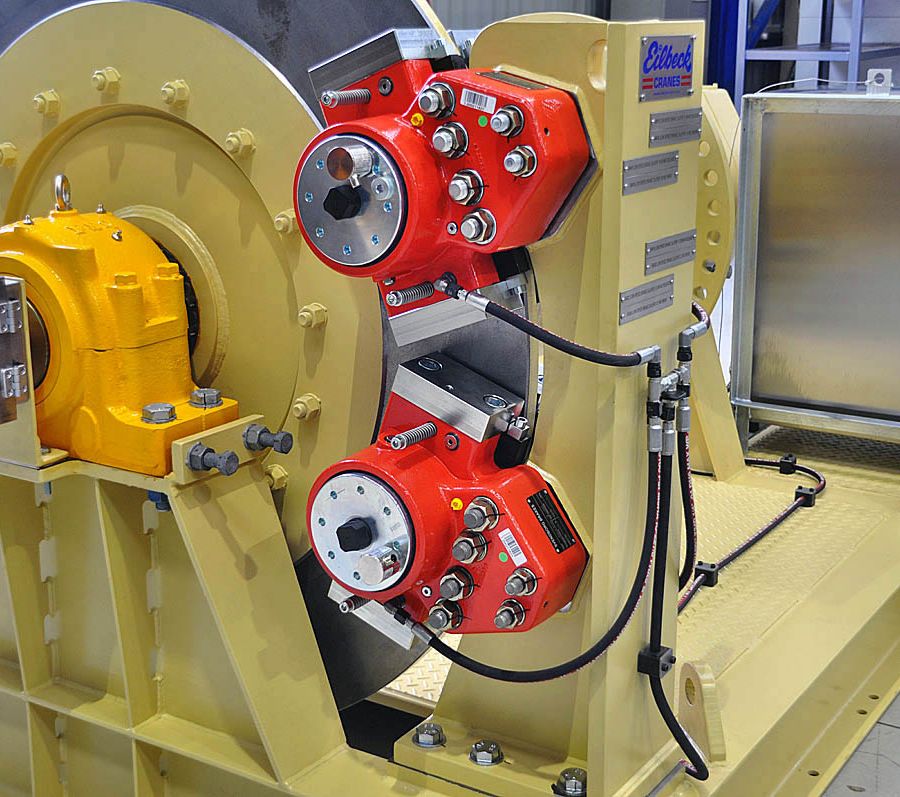

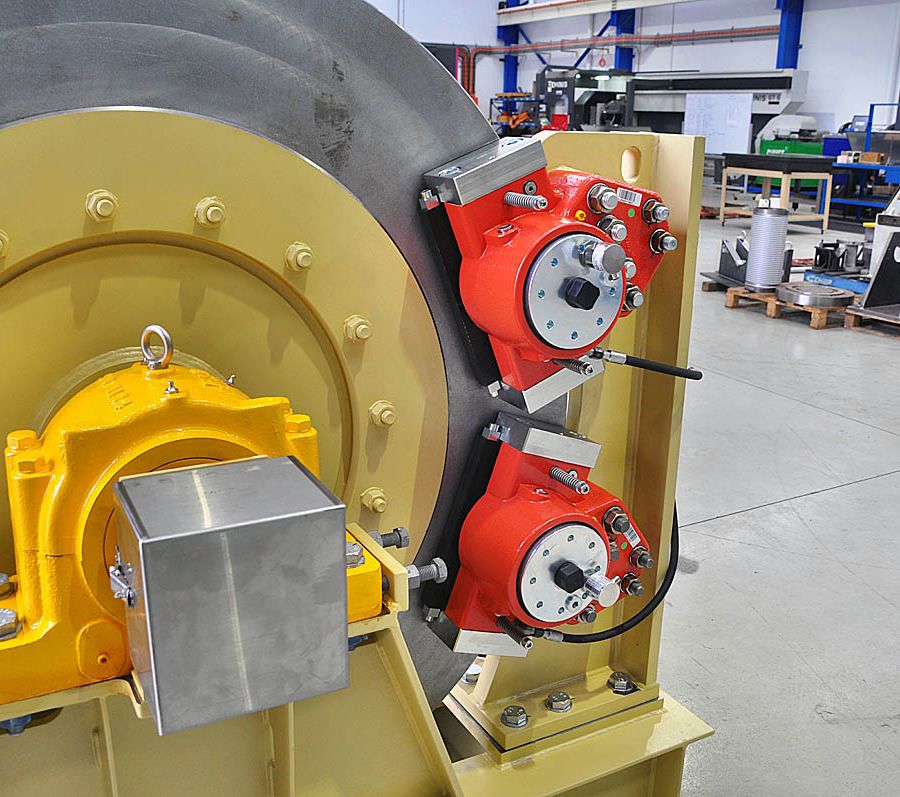

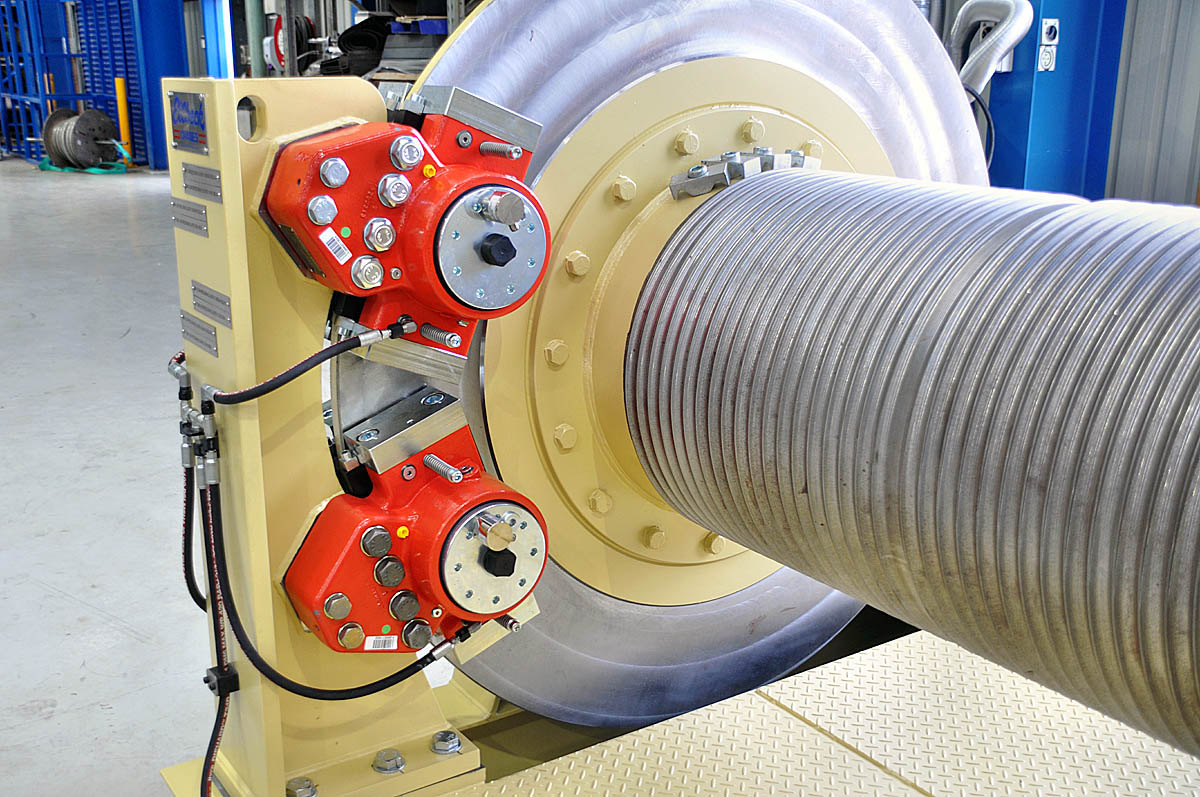

115 kN Line pull winch - Svendborg Hydraulic Brakes has built a solid reputation as a reliable supplier of modern innovative brake and supported throughout Australia and the world. Brevini and Regal CMG have supplied the proven shaft mounted gearmotor for both contracts.

Project Ref:	70008
Client:	LCOA of Australia Limited
Project:	190 Stacker Boom Luffing Winch
Scope:	Luffing Winch 115kN

Project...................................................................................	Kestrel Mine
Winch Capacity..................................................................	EWE.200.20-48.34
Line Speed...........................................................................	115kN
Rope Diameter...................................................................	25mm
Motor Power.......................................................................	25.1m (each side)
Motor Power.......................................................................	15kW
Winch Classification.........................................................	M6
Winch Weight.....................................................................	4700kg
Winch Overall DIMs (HWD)...........................................	(1560x2760x2720mm)
