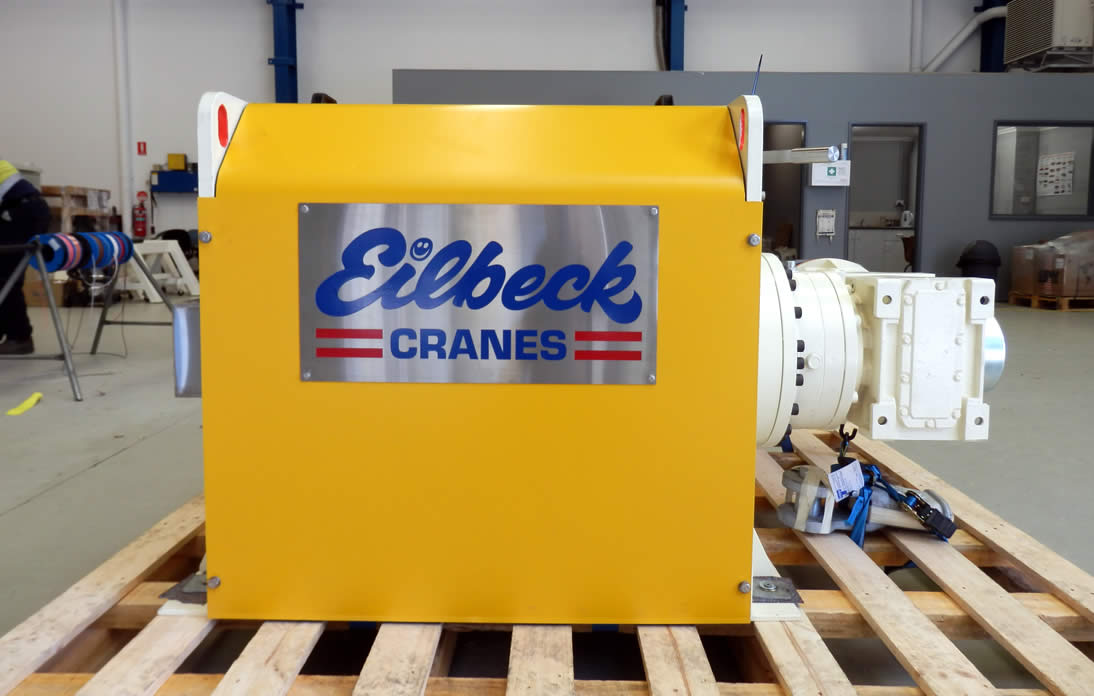

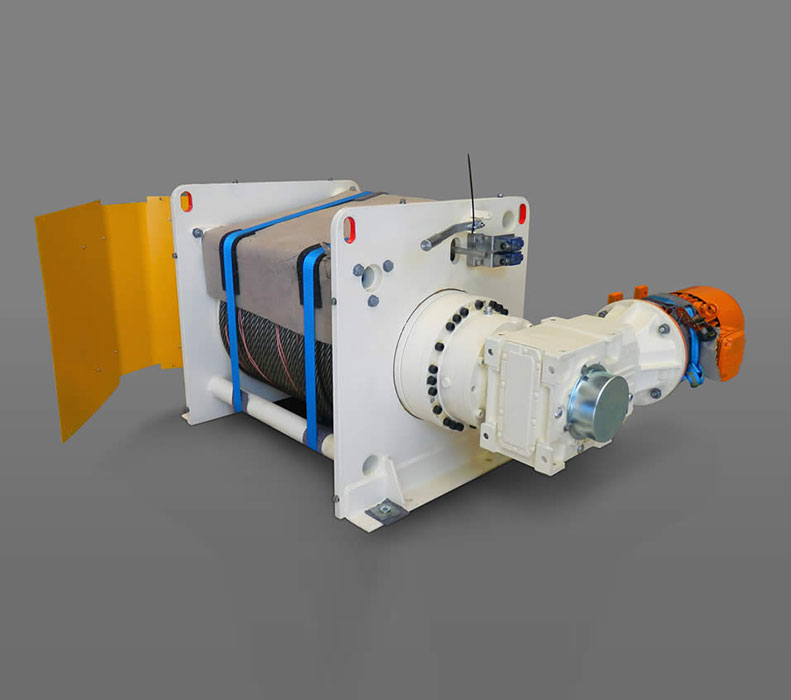

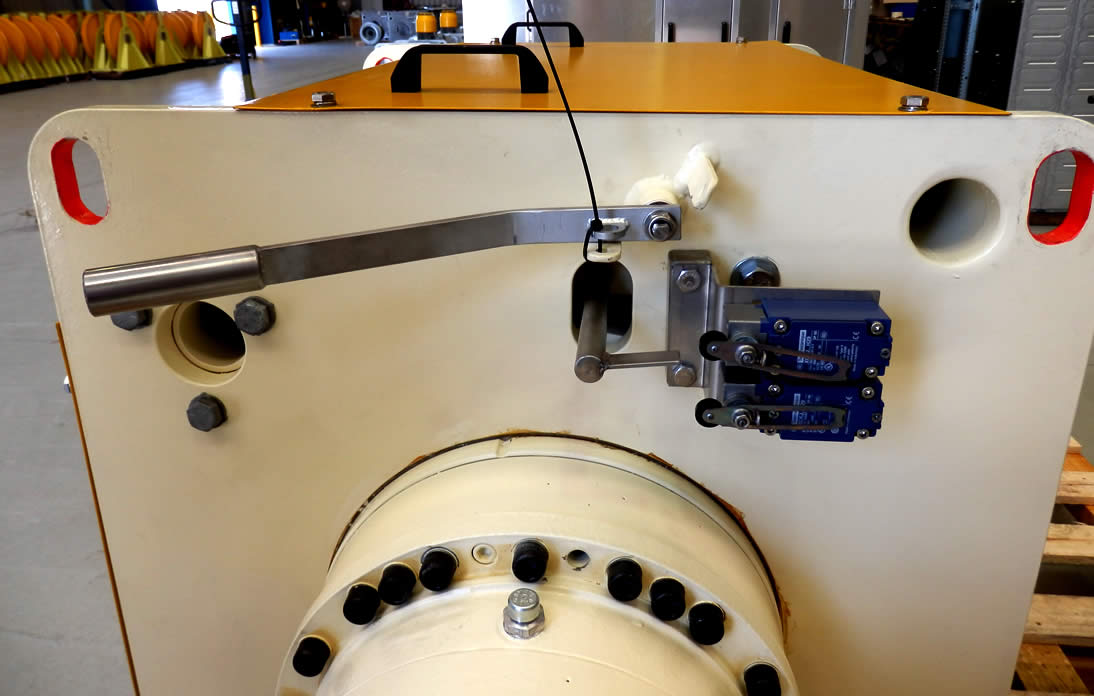

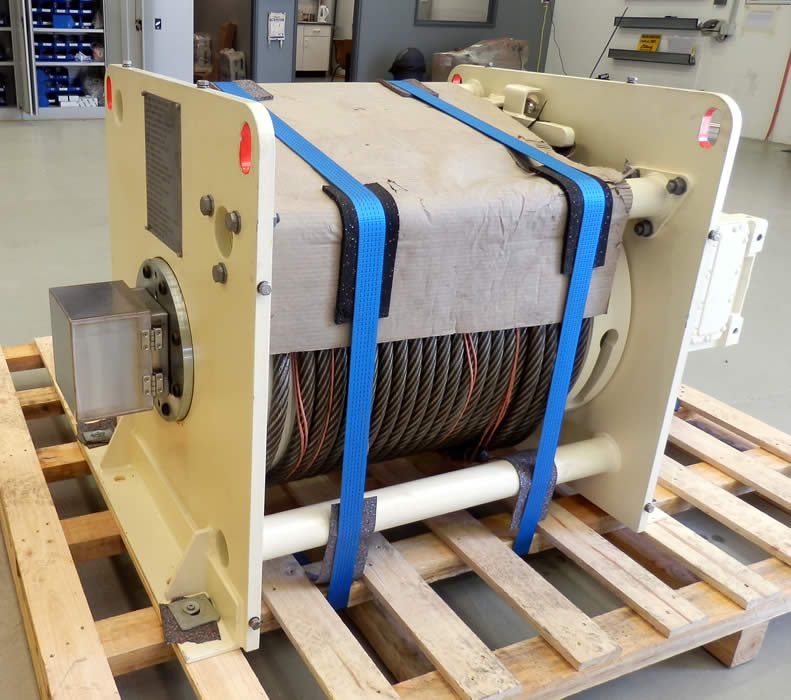

12t Take-up Winch
12t Take-up Winch
Project Ref:
43525
Client:
Rio Tinto
Project:
Kestrel Mine Extension
Scope:
12t Take-up winch
Technical Data:
Winch Classification: M6
Winch Capacity: 117.7 Kn (12t)
Line Speed: 4m/min
Rope Diameter: 28mm
Rope Construction: 1960MPa
Rope Breaking Strength: 726KN
Rope Static Safety Factor: 5.5
Rope Length: 50M
Rope Drum Root Dia: 583mm
No. of Rope Layers: 1
Gearbox Ratio: 709
Gearbox: Bonfiglioli 311L2
Gearbox Oil/volume: ISO VG220I15.5L
Motor Type: WEG-160-M30
Motor Power: 11.0KW/4-Pole/415V
Brake: Electro-Magnetic
Winch Weight: 1100kg
